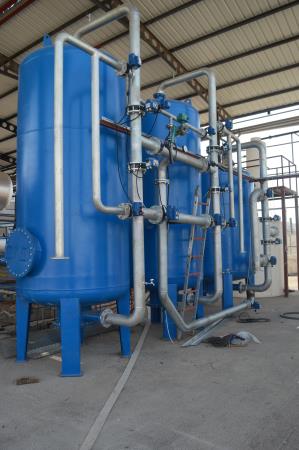

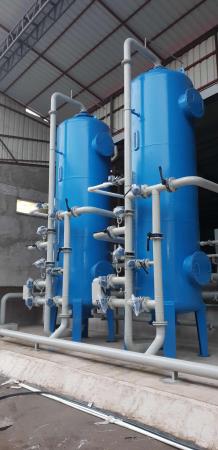

Tandem Water Softening Systems

Tandem water softening systems are used in industrial facilities to remove the hardness of high hardness water. Water softening systems remove calcium and magnesium from the water with the cationic resin in the mineral tank. Working with the simple ion exchange principle, these resins capture the Ca and Mg ions in the water and leave the Na ions in the resin structure instead.

Standard Features:

Epoxy painted carbon steel tank
Aquline brand cationic resin
Maximum working pressure 6 bar
Valves with pneumatic actuator (valve with electric actuator optional PVC- U) Material piping (optional galvanized and stainless piping) Sample taps and manometers at system inlets and outlets PLC based Siemens logo control panel (optional touch screen electricity 220V/50 Hz/1 Ph)
Salt consumption for 1 liter of resin is 150 grams. Resin capacity 6000 FR/Liter
The supply of dry instrument air required for the operation of the pneumatic valves belongs to the customer. Recommended compressor air 100 liters/min.-8 bar



Technicial Specification


MODEL

TANK DIMENSION

CONNECTION DIAMETER

DEBİ

SALT CONSUMPTION

MİNERALS

REÇİNE

OUARTZ

mm

DN

(m3/h)

(kg)

(lt)

(kg)

S 3072

775 x 2050

50 50-25

20

75

500x2

150x2

S-3672

975x2150

65-50-25

27

113

750 x2

250 x2

S-4272

1075X2400

65-50-25

32

135

900X2

300X2

S-4872

1225 x 2400

80-50-40

42

180

1200x2

500x2

S-6386

1600x2500

80-50-40

50

270

1800x2

800x2

ET-1220

1250*3120

80-50-40

50

270

1800*2

300*2

ET-1620

1600*3550

100-80-50

85

420

2800*2

600*2

ET-2020

2000*3550

125-80-50

135

660

4400*2

500*2

ET-2420

2400*3750

150-100-80

180

945

6300*2

700*2
